In the fast-paced world of manufacturing and logistics, packaging machinery serves as the backbone of product handling, ensuring items are sorted, grouped, and packaged efficiently. Among the many technologies driving this sector, electromagnets have emerged as a cornerstone for achieving precise, high-speed sorting. From food and pharmaceuticals to electronics and consumer goods, electromagnetic sorting systems enable manufacturers to meet stringent quality standards, reduce waste, and optimize production workflows.
As a professional electromagnet manufacturer, we delve into the mechanics, advantages, and innovations of electromagnetic sorting systems in packaging machinery. This blog explores how electromagnets are transforming the industry, their technical intricacies, and their potential to shape the future of automated packaging.
1. electromagnets for Electromagnetic Sorting
1.1 How Electromagnets Enable Precision Sorting
Electromagnetic sorting systems use controlled magnetic fields to manipulate objects on a production line. When an electric current passes through a coil, it generates a magnetic force that can attract, repel, or guide ferromagnetic or conductive materials. By modulating the current, the system can precisely control the timing, direction, and intensity of the magnetic force to sort items based on size, shape, or material composition.
1.2 Key Components of Electromagnetic Sorting Systems
- Electromagnetic Actuators: Generate the magnetic force required to move or separate objects.
- Sensors (e.g., vision systems, metal detectors): Detect object characteristics and trigger the electromagnet.
- Control Unit: Processes sensor data and adjusts electromagnetic parameters in real time.
- Conveyor or Chute System: Transports items through the sorting zone.
1.3 Types of Electromagnetic Sorting Mechanisms
- Magnetic Rail Sorters: Use electromagnets to divert items onto different conveyor paths.
- Vibratory Feeders with Magnetic Control: Adjust vibration patterns to sort items by weight or orientation.
- Pneumatic-Electromagnetic Hybrid Systems: Combine air jets and magnetic force for non-ferrous material sorting.
2. Advantages of Electromagnetic Sorting in Packaging Machinery
2.1 Unmatched Precision and Accuracy
Electromagnetic systems can distinguish between objects with micron-level differences, such as pharmaceutical tablets or microelectronics components. This precision minimizes errors in sorting and ensures compliance with quality control standards.
2.2 High-Speed Operation
With response times measured in milliseconds, electromagnets enable sorting rates exceeding 1,000 items per minute. This speed is critical for high-volume industries like food packaging or e-commerce fulfillment.
2.3 Flexibility and Adaptability
Electromagnetic systems can be reprogrammed to handle diverse products without mechanical adjustments. For example, a single system can sort chocolates, metal screws, and plastic caps by simply updating the control algorithm.
2.4 Reduced Material Waste
By accurately separating defective or non-conforming items early in the production line, electromagnetic sorting reduces material waste and lowers production costs.
2.5 Energy Efficiency
Unlike pneumatic systems that require continuous air compression, electromagnets consume power only during activation. Advanced designs, such as latching electromagnets, further reduce energy use by maintaining force without constant current.
3. Applications of electromagnets Across Industries
3.1 Food and Beverage Packaging
In food processing, electromagnetic sorters ensure hygiene and compliance:
- Metal Contaminant Removal: Detect and eject ferrous metal fragments from raw ingredients (e.g., grains, spices).
- Product Grading: Sort fruits, vegetables, or baked goods by size or quality using magnetic-guided chutes.
Case Study: A snack manufacturer reduced product recalls by 95% after integrating electromagnetic metal detectors and sorters into its production line.
3.2 Pharmaceutical and Medical Devices
Electromagnetic sorting guarantees precision in sensitive applications:
- Tablet Sorting: Separate tablets with cracks or incorrect dosages.
- Medical Instrument Assembly: Align tiny components (e.g., syringe needles, implant parts) during packaging.
3.3 Electronics Manufacturing
- Component Sorting: Eject defective resistors, capacitors, or connectors from high-speed assembly lines.
- E-Waste Recycling: Separate valuable metals (e.g., copper, gold) from discarded electronics using magnetic density differences.
3.4 Consumer Goods and Logistics
- Bottle Cap Orientation: Use magnetic guides to align caps for capping machines.

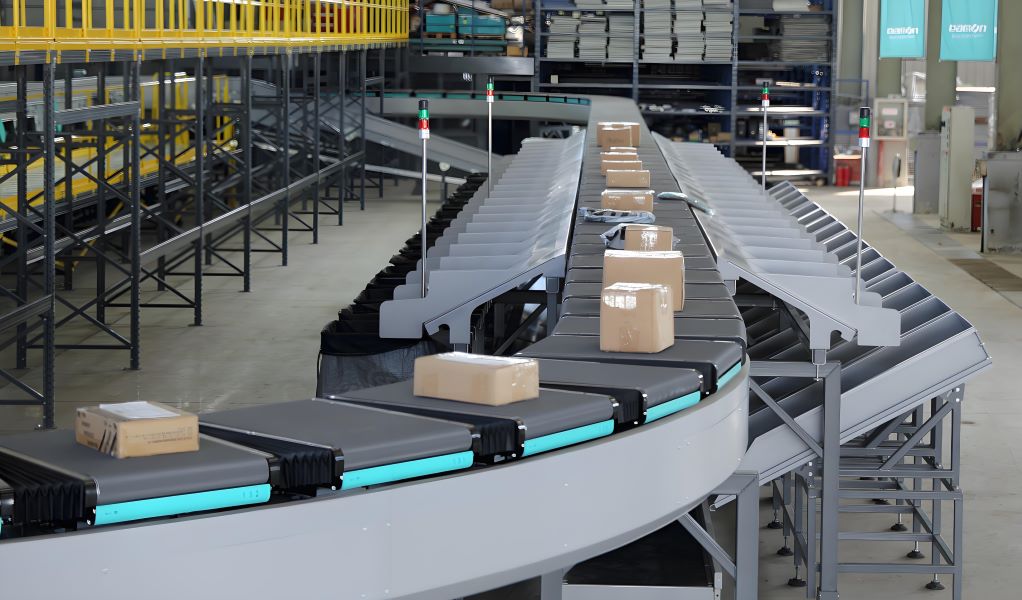

- Parcel Sorting: Direct packages to specific lanes based on size or destination using electromagnetic diverters.
4. Technical Challenges and Solutions of electromagnets
4.1 Material Compatibility
Challenge: Electromagnets primarily interact with ferromagnetic or conductive materials, limiting their use for non-magnetic items like plastics or glass.
Solution: Hybrid systems combine electromagnets with optical sensors, air jets, or robotic arms to sort mixed-material streams.
4.2 Heat Management
Challenge: Prolonged operation generates heat in coils, affecting performance and lifespan.
Solution: Integrate cooling systems (e.g., liquid cooling, heat sinks) and use high-temperature-resistant insulation materials.
4.3 Wear and Tear
Challenge: Repeated mechanical impacts from sorted items can damage electromagnetic actuators.
Solution: Use wear-resistant coatings (e.g., tungsten carbide) and modular designs for easy component replacement.
4.4 Signal Interference
Challenge: Electromagnetic noise from nearby machinery disrupts sensor accuracy.
Solution: Shield sensitive components and employ noise-filtering algorithms in the control system.
5. Innovations Shaping electromagnets Future
5.1 AI-Powered Smart Sorting
Machine learning algorithms analyze real-time data from cameras and sensors to optimize sorting parameters dynamically. For instance, AI can adjust magnetic force based on variations in product size or conveyor speed.
Example: A smart sorter in a recycling plant identifies and sorts aluminum cans from steel ones with 99.9% accuracy, even when crushed or deformed.
5.2 IoT-Enabled Predictive Maintenance
Embedded IoT sensors monitor coil temperature, current fluctuations, and mechanical stress. Data is transmitted to cloud platforms to predict maintenance needs and prevent downtime.
5.3 Miniaturized Electromagnetic Actuators
Advances in micro-electromagnets enable sorting of ultra-small components, such as semiconductor chips or microneedles, with nanoscale precision.
5.4 Sustainable Sorting Solutions
Energy-efficient electromagnets and recyclable materials align with circular economy goals. For example, systems recover and reuse magnetic materials from industrial waste streams.
5.5 Human-Machine Collaboration
Collaborative robots (cobots) equipped with electromagnetic grippers work alongside humans to handle fragile or irregularly shaped items, enhancing flexibility in small-batch production.
6. Choosing the Right Electromagnetic Sorting System
6.1 Key Selection Criteria
- Material Type: Ferromagnetic, non-ferrous, or mixed materials.
- Sorting Speed: Items per minute (IPM) requirements.
- Accuracy: Tolerance levels for acceptable defects.
- Integration: Compatibility with existing conveyor systems or PLCs.
6.2 Customization for Industry Needs
As a manufacturer, we offer tailored solutions, including:
- High-Frequency Sorters: For ultra-fast applications like confectionery packaging.
- Sanitary Designs: Electropolished, FDA-compliant systems for food and pharma.
- Heavy-Duty Actuators: For sorting large metal parts in automotive supply chains.
Electromagnets—The Future of Intelligent Sorting
Electromagnetic sorting systems are redefining the capabilities of packaging machinery, offering unparalleled precision, speed, and adaptability. As industries grapple with rising consumer demands, labor shortages, and sustainability pressures, electromagnets provide a scalable, future-proof solution.
For businesses seeking to enhance their packaging lines, investing in electromagnetic sorting technology is not just a competitive advantage—it’s a necessity. By partnering with an experienced electromagnet manufacturer, companies can unlock new levels of efficiency, reduce waste, and deliver products that meet the highest standards of quality and safety.
