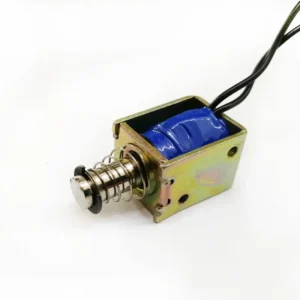

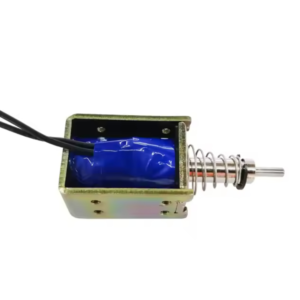

10mm Stroke Push Pull Electromagnet Dc 6v-24v 15N Impulse

Product Category:Push Pull Solenoid

Rated Voltage:DC24V/12V/6V

Rated Power:4.5-45w

Rated Stroke:10mm

Temperature Rise:65℃ Max

Duty Circle:10%

Work Life:0.5 million cycle(10% )

Dimension:40*29*24mm

Share:

1-Product description

1.1 Structural composition

The main structure of the push-pull electromagnet includes the following parts:

‌1.1.1-Electromagnetic coil‌: It is composed of a wire or cable wound around an iron core. When current passes through it, the coil will generate a magnetic field.
‌1.1.2-Iron core‌: It is usually located in the center of the electromagnet. It can be movable or fixed. It is designed to be pushable or pullable according to needs.
‌1.1.‌3-Spring‌: It is used to push the iron core back to the base of the electromagnet. When the current stops, the iron core will return to its original position.
‌‌1.1.4-Moving slide and static iron core power supply control system‌: These components work together to make the moving slide of the electromagnet and the static iron core attract back and forth over a long distance, thereby realizing the push-pull action.

1.2 Working principle

The working principle of the push-pull electromagnet is to attract or repel the iron core through the magnetic field generated by the electromagnetic coil, thereby achieving the push-pull action. When current passes through the electromagnetic coil, the coil generates a magnetic field, which attracts or repels the iron core located in the center of the coil, thereby achieving the push-pull action. When the current stops, the iron core returns to its original position under the action of the spring.

1.3 Advantages

The advantages of push-pull electromagnets mainly include the following aspects:

1.3.1-High efficiency and stability: Push-pull electromagnets can maintain stable output during long-term operation, and have the characteristics of reliable performance, sensitive action, long life, high efficiency and stability. It can start working very frequently and is suitable for various simple or complex process processes.

‌‌1.3.2-Large push-pull force: Push-pull electromagnets can generate large push-pull forces. At present, there are products on the market that can achieve push-pull forces of several hundred kilograms, which is incomparable for manual or traditional mechanical equipment.

‌‌1.3.3-Large stroke: Push-pull electromagnets usually have a large stroke range and can maintain strong magnetic force at a long distance to meet the needs of long-distance push-pull.

‌‌1.3.4-Easy to install and maintain: The installation process of push-pull electromagnets is convenient and quick, and it is not easy to be damaged during use, which reduces the difficulty and cost of maintenance and replacement of parts.

‌1.3.‌5-Wide application: Push-pull electromagnets are widely used in power, machinery, metallurgy, mining, petroleum, chemical industry, lifting, cement packaging and other industries, and are suitable for various equipment and systems that require push-pull actions.

2-Product parameter

Type Mounting Type Diameter Voltage Wattage Duty Circle Rated Stroke Tolerance Temperature Rise Work Life Service
Push & pull
thread mounted hole
40*29*24mm
DC6V-24V
4.5-45
Electrify 10%
10mm
±0.3
65℃ Max
0.5 million cycle(15% )
OEM ODM

3-Product details

1-spring

Strong spring toughness is high, repeated use is still elastic, to ensure that each expansion can be fast in and out

2-coil

Using the national standard copper coil, wound core components, faster heat dissipation, low power consumption, low temperature, long time use, improve the efficiency of the electromagnet and extend the life

3-installation

Easy and convenient installation,the screw thread is fixed, the installation is stable, the disassembly is convenient, saving time and labor

4-cooling

Good heat dissipation performance:The use of high quality raw materials, durable, good heat dissipation, not afraid of large temperature difference changes, no remanent magnetic power

4-How to Customize

The push pull electromagnet is a non-standard customized electronic component. Except for the coil frame which is molded, other accessories and parameters can be customized as required.

Customization process:

4.1. Contact us: Please send an email or WhatsApp to contact us(+86 18902611680)

4.2. Provide requirements: Provide parameters such as voltage, force, stroke, on-off ratio and size.

4.3. Specification confirmation: We select and issue specifications according to requirements. Except for the outer frame size, other shaft sizes and lengths can be customized. If it is made according to a specific outer frame size, a mold needs to be opened.

4.4. Proofing: We make samples according to the specifications, and the production cycle is about 7 days.

4.5. Sample testing: If the sample test is qualified, a batch order will be placed. If it is unqualified, the sample will be remade.

4.6. Mass production: Sign a bulk purchase and sale contract.

5-applications
